Project: 2008 Sea Ray Sundancer 280
Project Date: July 24th 2024
Solar Panel: (1) 150W Flexible 26.8” x 46.1” Solar Panel
Equipment: (1) MPPT 100V/20A 48volt Charge Controller, (1) DC 2 Pole 20amp Circuit Breaker.
Cables: 20’ 10AWG Solar Extension Cables
Accessories: (4) 110lb+ Cup Magnets,
Installation started with placing (4) cup magnets at the corners of the solar panel using stainless steel 1/8” x 3/4” screws and lock-tight nuts. After attaching the magnets to the panel, it was centered on the bimini top, and the South Pole of the magnets was connected underneath the bimini. _____________________________________________________________________________________________________________________________________________________________________________________________________________________________
2008 Sea Ray Sundancer 280

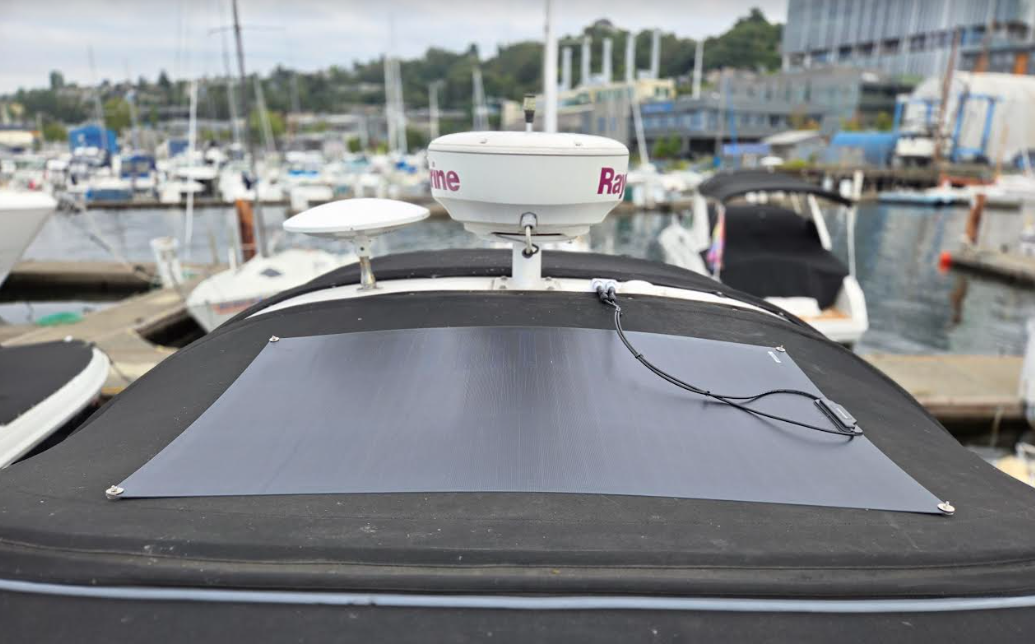

Solar Panel centered on Bimini Top (150W) 46.4" x 27.2"

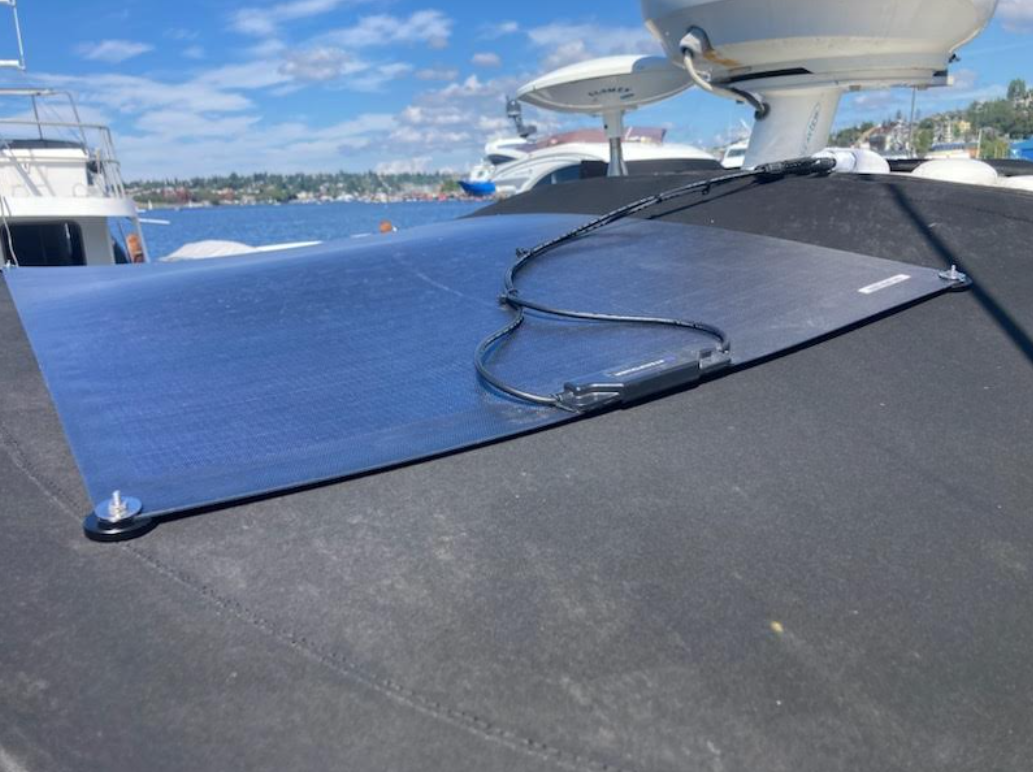

150W Solar Panel 46.4" x 27.2"

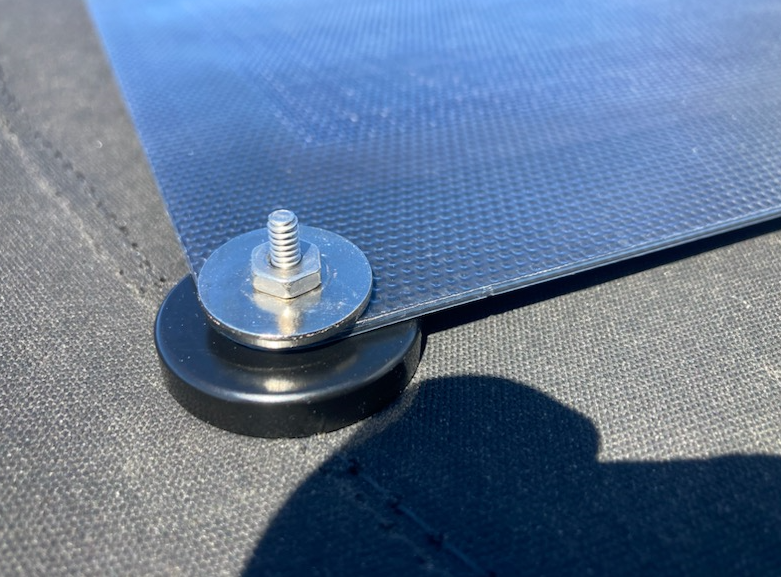

Top of magnet
Double Cable Waterproof Connector Cover

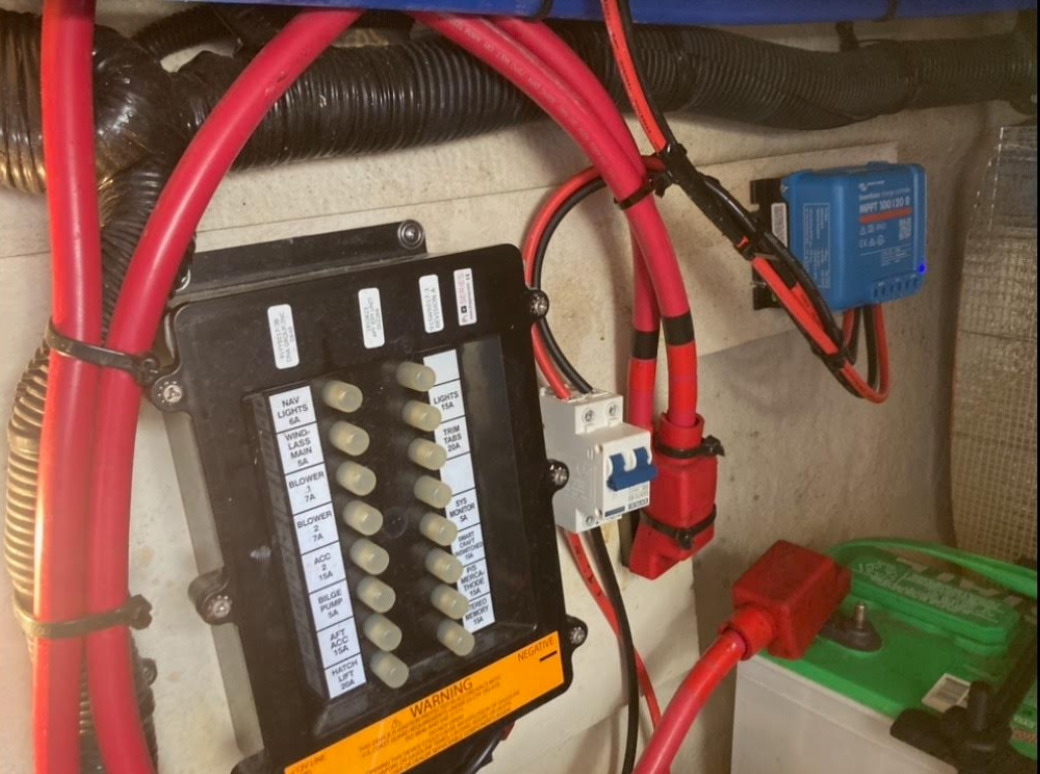

Charging System

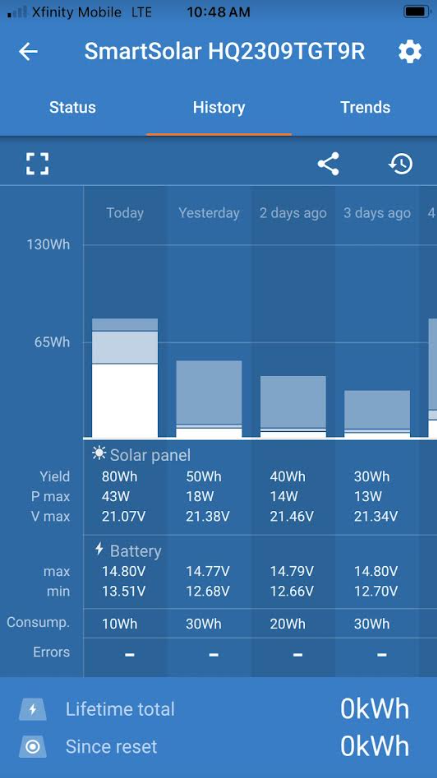

SmartSolar Bluetooth phone display.
